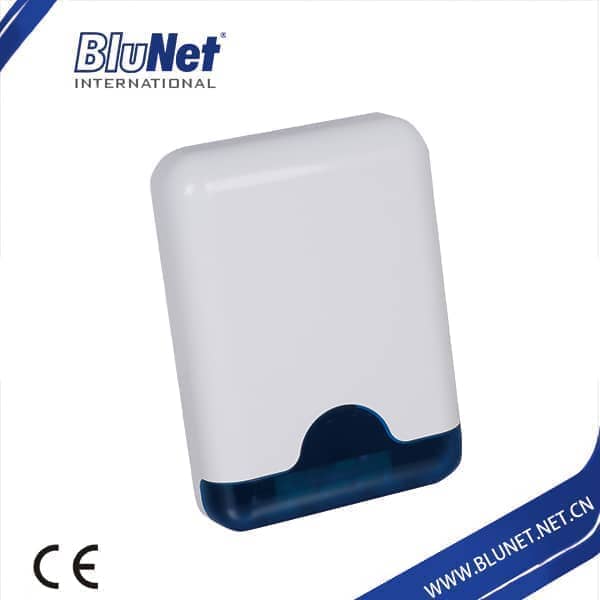

External Siren with flasher EAS-730
Adding exterior motion detectors, automatic lighting, and an external siren with a flasher is a first-level defence when trying to send a clear message to intruders.
DSW Electronics is the foremost manufacturer of siren lights, offering exceptional quality products at competitive prices.
With a commitment to excellence, DSW Electronics has established itself as a trusted industry leader in the field of strobe sirens.
Specification of strobe sirens
| Parameter | Specification |
|---|---|
| Product Name | Piezo Siren Light |
| Impedance | Piezo elements |
| Input Voltage | 12 VDC |
| Operating Voltage | 6 to 15VDC |
| Min. S.P.L. | 118 dB at 12VDC/1m |
| Max. Current | 250 mA at 12VDC (one piezo) |
| Flash Rate | 115 +/- 15 Per Minute |
| Strobe Lens | Acrylic Lens |
| Tone Nature | Warble |
| Housing | White ABS Plastic |
| Weight | 1.2 Kg |
| Dimensions | 200mm x 155mm |
| Remark | Microprocessor With Tamper Switch |
External Siren with flasher EAS-730
Advanced Features:
- Configurable LED indicators for system and fault status
- Self-diagnosis functionality to monitor battery, horn, and flashing light integrity
- Four selectable siren tones with configurable delay and cutoff timer
- SAB/SCB operating modes
- Tamper switches for enhanced security
The model EAS730 Self-powered Outdoor Siren with Flasher features two additional signalling LEDs,
which can be individually disabled:
• The system status is RED LED
• The fault YELLOW LED (enabled only when the system is disabled).
In addition, siren EAS730 also features an “active self-diagnosis” function used to check battery, horn, flashing light
and protection module (if any) wholeness, as well as the correct presence of the power supply from the control unit.

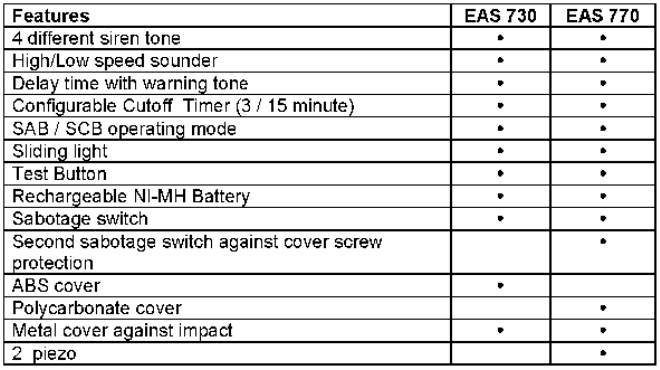

Four different siren tones High/low-speed sounder Delay time with a warning tone
Configurable cutoff timer SAB/SCB operating mode Sliding light Test Button
Rechargeable NI-MH Battery Sabotage Switch Second Sabotage Switch against Cover Screw
protection ABS Cover/ Polycarbonate cover Metal Cover Against Impact 2 Piezo SOUNDER
Benefits:
Versatility: The Sounder with Flasher is designed to be compatible with any brand of conventional fire detection systems, allowing for seamless integration into existing setups.
Enhanced Safety: The strobe sirens provide audible and visual alerts that ensure fire alerts are easily noticeable, even in noisy or visually challenging environments.
External Environment Suitability: This device is precisely engineered to withstand the rigours of external environments, including exposure to weather elements, ensuring its durability and reliable performance.
Easy Installation: The External siren with Flasher can be easily installed in various external locations, making it a versatile solution for alarm detection in outdoor areas.
Compliance: The device meets the necessary safety and regulatory standards, ensuring its suitability for fire detection systems.
