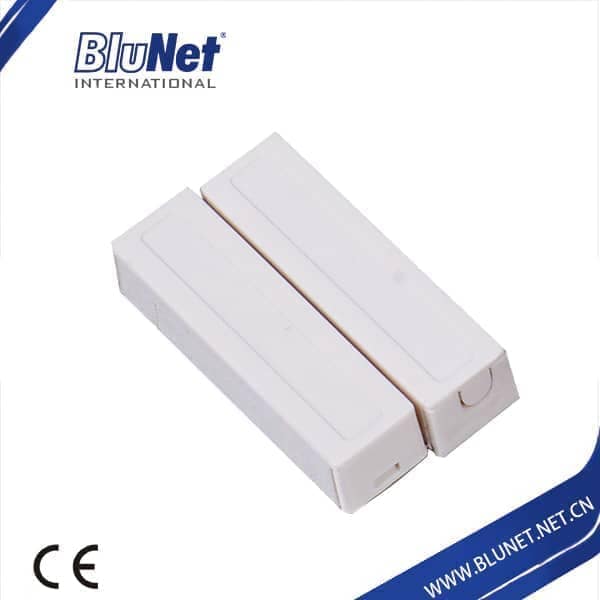

Magnetic Door Sensor MCS-3302

Magnetic Door Sensor MCS-3302

DSW Surface Mount alarm contacts come in wired and terminal-connect models, from our micro to commercial-grade models.
Closed Loop and Open Loop SPDT/DPDT configurations and wide gap options are also available.
They can be integrated with alarms, surveillance cameras, or access control systems to provide a comprehensive security solution.
They are relatively simple, reliable, and cost-effective devices that provide an added layer of security by detecting when doors or windows are opened or tampered with.

Surface Mounted Magnetic Contact
Magnetic door sensors are commonly used in alarm systems to trigger the opening and closing of doors and windows. They consist of two parts encased in a plastic shell: a magnet and a sensor/switch.

A magnetic sensor detects the magnitude of magnetism and geomagnetism generated by a magnet or current. There are many different types of magnetic sensors.
Reliable, quality products at an affordable price – DSW.

Product Overview: Magnetic Door Sensor

DSW’s Magnetic Sensor is a precision-engineered security device that detects unauthorized door openings. The sensor enhances security by generating an alert when the door is opened or closed, enabling prompt responses to unauthorized access.

Specs. of MCS-3302 Magnetic Contact

Contact Type	Contact Rating	Opera. Gap	Magnet	Lead Wire	Housing	Dim	Listings	Remark
Reed Switch	Breakdown Voltage 100V	1 1/4 Inch	14×12.3 mm	#22 AWG 18	Screw Mount ABS	50x14mm	UL, CUL, CE	A: Open or C: Closed& Open

1.97″L×.55″W×.47″H Surface Mount Type W/Hidden Wires and Screws
Contact Size: 1.97″L×.55″W×.47″H
(50mm×14mm×12mm)
Standard Magnet Size: 1.98″L×.56″W×.48″H
(50.3mm×14.1mm×12.2mm)
Standard Gap: 1.26″(32mm)
Colours: White, Brown, Gray
Material: High-impact ABS

Key Features and Benefits

High-Precision Sensing: DSW’s magnetic sensors provide high-accuracy detection, ensuring immediate alerts to unauthorized access while minimizing false alarms.
Easy Installation: Designed with a surface mount setup, DSW’s magnetic door alarms are quick and easy to install, making them a practical choice for large-scale security projects.
Durable Construction: The sensor is encased in high-quality ABS plastic, ensuring resilience in diverse environments, including commercial and residential spaces.
Flexible Connectivity: In wired and wireless models, DSW’s magnetic sensors integrate seamlessly with most standard security systems, allowing for versatile security setups.
Tamper-Resistant Design: The sensor’s design includes tamper-resistant features to safeguard against interference, helping ensure reliable operation.

Application and Use Cases

Magnetic door sensors are essential for a variety of security applications, including:

• Residential Security: Ideal for home security systems, detecting unauthorized door openings to alert homeowners.
• Commercial Buildings: Protects sensitive areas by alerting security staff to unauthorized door access.
• Warehouses and Facilities: Monitoring doors to restricted areas, enhancing facility-wide security.

Why Choose DSW’ Magnetic Door Alarm?

With decades of expertise, DSW Electronics prioritizes:

• Quality and Reliability: Manufactured to withstand environmental challenges, our magnetic door sensors deliver consistent performance in any setting.
• Ease of Integration: Our sensors are compatible with a wide range of alarm and security systems, offering flexibility for security integrators worldwide.
• Cost-Efficiency: DSW’s magnetic door sensors are designed to provide superior performance at competitive prices, making them a wise investment for large-scale security projects.

Reliable Door Sensors Solutions

For departments and organizations seeking reliable, easy-to-integrate security solutions, DSW Electronics provides the ideal magnetic door sensors.
With decades of expertise in security manufacturing, our sensors offer quality, durability, and peace of mind for international buyers.
Contact DSW today to discover how our magnetic door sensors can enhance your security systems.
