Outdoor Siren with beacon

Outdoor Warning Siren

The Outdoor Siren with Strobe is an audible and visual signalling device commonly used for outdoor warning, security, and emergency notification purposes
The siren operates on a relatively low voltage, typically between 6 and 15 volts DC.
This allows for flexibility in power supply options, including battery backup systems or direct connection to a power source.
The Siren with Strobe is commonly used in various outdoor settings, including industrial facilities, commercial buildings, construction sites, campuses, and public

Since 1998, DSW Electronics has specialized in producing outdoor sirens with beacons, siren alarms, motion detectors, and magnetic sensors with superior quality and service for home security and house alarm systems.
Our products are engineered with top-grade materials and advanced technology to enhance the security of homes, businesses, and facilities. With nearly three decades of expertise, DSW Electronics ensures quality, reliability, and ease of use for international buyers seeking high-performance security solutions.

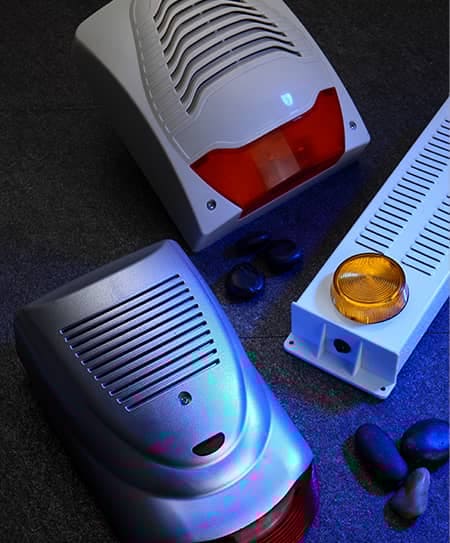

outdoor siren security alarm

Product Overview

Our Outdoor warning Siren combines high-decibel sound output and strobe lighting for effective intrusion deterrence and instant visual alerts. It is ideal for home security, house alarms, and commercial security.

Specification Details
Product Name Outdoor Siren with Strobe
Impedance 8 Ohm
Input Voltage 12 VDC
Operating Voltage 6 to 15 VDC
Minimum SPL 115 dB at 12VDC/1m
Max. Current 1400 mA at 12VDC
Flash Rate 115 +/- 15 Per Minute
Strobe Lens Acrylic Lens
Tone Nature Warble
Housing Material Metal Steel
Weight 1.3 Kg
Remark Two Piezo Speaker Dia. 50mm

Features and Benefits

  1. MCU-Driven Circuit Design: Using a microcontroller (MCU) ensures reliable and consistent performance, with sound and strobe control precision.
  2. High SPL (118 dB Minimum): This siren delivers a powerful 118 dB sound output, effectively deterring intruders and alerting nearby individuals.
  3. Multi-Functional LED System: The LED system includes four standby lights, which indicate that the system is active before an alarm is triggered.
  4. Robust Protection Against Insects: The plastic housing design is precisely engineered to prevent ants and insects from entering and damaging the internal components, which is essential for reliable outdoor performance.
  5. Tamper Resistance: The EAS-346F model includes tamper-resistant features with two sealed reed switches on the back plate and front cover for enhanced security. These switches provide additional protection by triggering an alert if tampering occurs.

Outdoor Alarm Siren

Model Spotlight: EAS-346F Outdoor Siren with Beacon Flasher

The EAS-346F is a high-end outdoor siren that meets rigorous anti-intrusion and security standards. Its metal enclosure is both tamper- and weather-resistant, making it suitable for various challenging environments.

  • Double Housing: Featuring a UV-resistant external 3mm plastic PC layer and an internal 0.8mm metal layer, the double housing ensures enhanced protection from physical and environmental damage.
  • Tamper Protection in Three Ways: This model offers three modes of tamper protection—screw tamper, cover tamper, and housing tear-away tamper, which provide multiple layers of security.
  • Flexible Alarm Triggers: The EAS-346F has positive and negative alarm trigger inputs, making it compatible with various alarm setups. The trigger input can also activate the flashlight independently of the siren.
  • Selective Flashing Options: The system allows for selection between a continuous lamp flash and a high-intensity Xenon flash, adding flexibility for different security requirements.
  • Battery Discharge Protection: For added resilience, the siren is designed to avoid complete battery drain, ensuring that it remains functional during power outages or interruptions.
  • Easy Installation: The plug terminal design simplifies installation, particularly useful for international buyers managing large-scale installations.

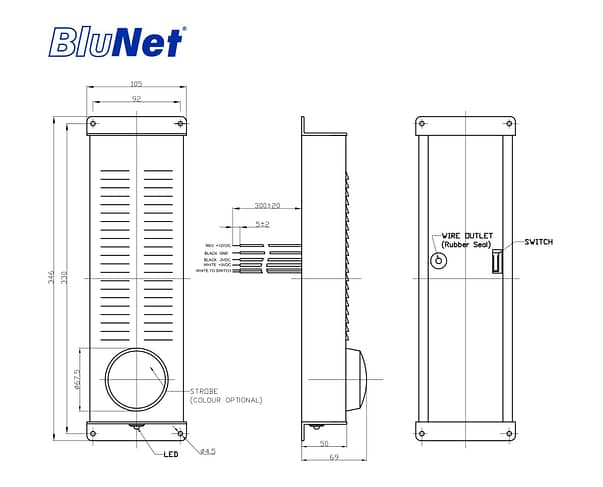

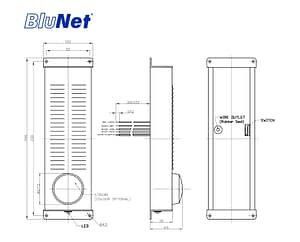

EAS-346F.outdoor siren with flash self contained siren

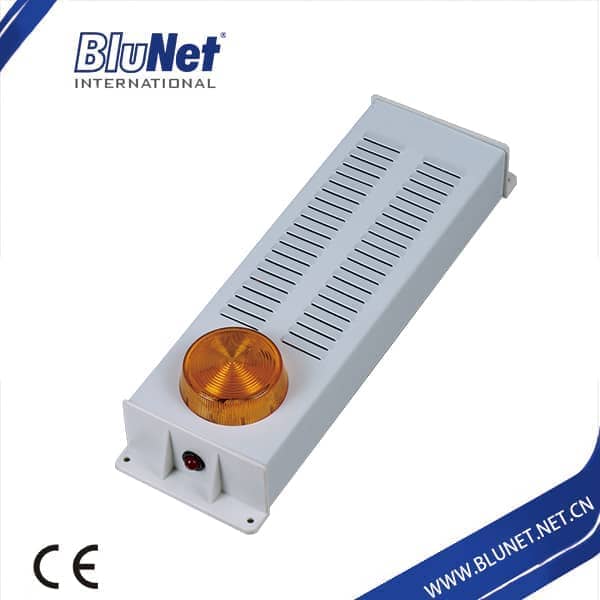

Outdoor Siren with beacon flasher EAS-346F
The EAS-346F is a self-contained siren with a tamper-resistant and weather-resistant Metal enclosure. It is specially designed for anti-intrusion, intrusion alarm, burglar alarm, and security system use.
It features two sealed reed tamper switches, one on the back plate and one on the front cover.
The switches are typically closed and pre-wired in series. The EAS-346F can produce two distinct sounds from a single input trigger.
Outdoor siren with beacon.
Double housing: external-3mm plastic PC with UV,internal-0.8mm metal.
Continuous frequency modulated sound Tamper protection in 3 ways – screw or cover opening or tearing housing from the wall Positive and negative alarm trigger inputs Trigger input to activate only the flashlight Siren period can ser as follow trigger or 3 min cutoff Selector for a lamp or Xenon Alarm by primary power failure Protecting against totally battery discharge.
Plug terminal for easy installation Environmental immunity.

Supply of Outdoor Siren

For departments looking to enhance their security offerings with durable and powerful outdoor sirens, DSW Electronics provides proven solutions with reliable performance.
Contact us today to learn more about our outdoor sirens with beacons and how they can fit into your security systems.
